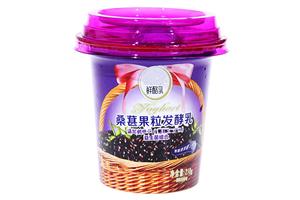

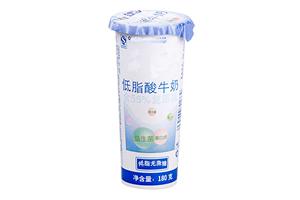

The Cup Filling Machineis suitable to fill and seal plastic cups or bowls. These containers can be filled with liquids or cream, jelly, milk ice-cream, coconut meat, fruit jam and others. A position guiding device is used for film-cutting; as a result, edges are fine-looking. The Cup Filling Machinehas automatic process for cup-feeding, filling, sealing, cutting and printing, it's equipped with sensors to ensure the right filling and sealing.
The Cup Filling Machineis made of stainless steel and it has several models able to satisfy different kinds of containers, even under special clients' requirements. It's equipped with a date-code printer as well.
Features of the Cup Filling Machine
1. Drive and traction system

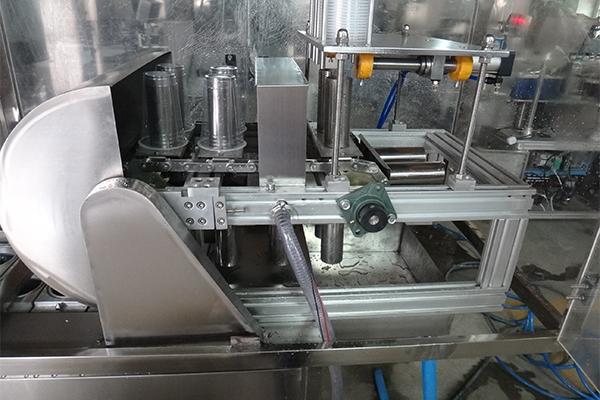

2. Cup loading system
3. Ration filling system
4. Icon orientation
5. Hot sealing and cutting system
Technical Parameters
| Model |
JND-2C |
| Power supply |
380V/50Hz |
| Power (KW/H) |
2 |
| Productive ability (Cups/H) |
1500-2100 |
| Air pressure (Mpa) |
0.65-0.85 |
| Air consumption(M3/Min) |
0.6 |
| Total weight(Kg) |
700 |
| Dimension(L*W*H)(mm) |
3000*600*1500 |
| Model |
JND-4C |
| Power supply |
380V/50Hz |
| Power (KW/H) |
3.2 |
| Productive ability (Cups/H) |
3000-4100 |
| Air pressure (Mpa) |
0.65-0.85 |
| Air consumption(M3/Min) |
0.7 |
| Total weight(Kg) |
800 |
| Dimension(L*W*H)(mm) |
3200*780*1500 |
| Model |
JND-6C |
| Power supply |
380V/50Hz |
| Power (KW/H) |
5 |
| Productive ability (Cups/H) |
4500-6000 |
| Air pressure (Mpa) |
0.65-0.85 |
| Air consumption(M3/Min) |
0.8 |
| Total weight(Kg) |
900 |
| Dimension(L*W*H)(mm) |
3200*950*1500 |
| Model |
JND-8C |
| Power supply |
380V/50Hz |
| Power (KW/H) |
6.5 |
| Productive ability (Cups/H) |
6500-7500 |
| Air pressure (Mpa) |
0.65-0.85 |
| Air consumption(M3/Min) |
0.8 |
| Total weight(Kg) |
1000 |
| Dimension(L*W*H)(mm) |
3500*780*1500 |
| Model |
JND-10C |
| Power supply |
380V/50Hz |
| Power (KW/H) |
8.2 |
| Productive ability (Cups/H) |
7000-10000 |
| Air pressure (Mpa) |
0.65-0.85 |
| Air consumption(M3/Min) |
0.9 |
| Total weight(Kg) |
1100 |
| Dimension(L*W*H)(mm) |
3500*950*1500 |
| Model |
JND-16C |
| Power supply |
380V/50Hz |
| Power (KW/H) |
12 |
| Productive ability (Cups/H) |
14000-16000 |
| Air pressure (Mpa) |
0.65-0.85 |
| Air consumption(M3/Min) |
1.0 |
| Total weight(Kg) |
1400 |
| Dimension(L*W*H)(mm) |
4200*1200*1500 |
