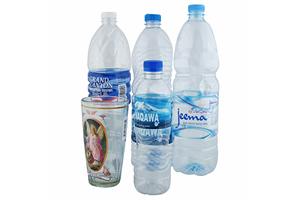

Applicable Bottle Types
J&D shrinkable label inserting machine (trapping label machine) is suitable for various kind of bottle types, for example round bottles, square bottles, flat bottles, curved bottles and cup-shaped bottles, etc. Meanwhile, bottles of different materials could be labeled with automatic shrinkable label inserting machine.
Warm Suggestion for Beverage Manufacturers
J&D can provide you a complete production line composed of:
beverage filling machine + shrinkage label inserting machine/labeling machine + Ink jet printer + Shrink packaging equipment
Configuration Specification
PLC control system, imported servo motor, servo driver, frequency converter and transducer, etc. are all available in our auto shrinkable label inserting machine.
Additionally, positioning module guaranteed precise, rapid and stable label inserting.
Introduction on Automatic Shrinkable Label Inserting Machine
1. J&D shrinkable label inserting machines have higher production efficiency for our improvement on their mechanical structure, circuit design, and intellectual control system, etc.
2. It is widely used by beverage manufacturers and can help reducing production cost for improved production efficiency.
3. By changing the modules, the machine will be able to realize the labeling of different kinds of bottles.
4. Electric eye device is adopted in this trapping label machine, which guaranteed a precise label cutting.
Technical Parameters:
| Model |
JND-150 |
| Production Capacity (BPH) |
150 BPMIN |
| Input Voltage |
AC380/220V |
| Input Power (KW) |
20-48 |
| Diameter of Bottle Body |
Ф28 mm-Ф100mm |
| Length of Label |
30 mm ~ 250mm |
| Thickness of Label |
0.03 mm ~0.13 mm |
| Internal Diameter of Paper Tube |
Optional within 5"~10" |
| Model |
JND-250 |
| Production Capacity (BPH) |
250 BPMIN |
| Input Voltage |
AC380/220V |
| Input Power (KW) |
20-48 |
| e Diameter of Bottle Body |
Ф28 mm-Ф100mm |
| Length of Label |
30 mm ~ 250mm |
| Thickness of Label |
0.03 mm ~0.13 mm |
| Internal Diameter of Paper Tube |
Optional within 5"~10" |
| Model |
JND-300 |
| Production Capacity (BPH) |
300 BPMIN |
| Input Voltage |
AC380/220V |
| Input Power (KW) |
20-48 |
| Applicable Diameter of Bottle Body |
Ф28 mm-Ф100mm |
| Length of Label |
30 mm ~ 250mm |
| Thickness of Label |
0.03 mm ~0.13 mm |
| Internal Diameter of Paper Tube |
5"~10" adjust it at will |
| Model |
JND-350 |
| Production Capacity (BPH) |
350 BPMIN |
| Input Voltage |
AC380/220V |
| Input Power (KW) |
20-48 |
| Diameter of Bottle Body |
Ф28 mm-Ф100mm |
| Length of Label |
30 mm ~ 250mm |
| Thickness of Label |
0.03 mm ~0.13 mm |
| Internal Diameter of Paper Tube |
Optional within 5"~10" |
| Model |
JND-400 |
| Production Capacity (BPH) |
400 BPMIN |
| Input Voltage |
AC380/220V |
| Input Power (KW) |
20-48 |
| Diameter of Bottle Body |
Ф28 mm-Ф100mm |
| Length of Label |
30 mm ~ 250mm |
| Thickness of Label |
0.03 mm ~0.13 mm |
| Internal Diameter of Paper Tube |
Optional within 5"~10" |
| Model |
JND-450 |
| Production Capacity (BPH) |
450 BPMIN |
| Input Voltage |
AC380/220V |
| Input Power (KW) |
20-48 |
| Diameter of Bottle Body |
Ф28 mm-Ф100mm |
| Length of Label |
30 mm ~ 250mm |
| Thickness of Label |
0.03 mm ~0.13 mm |
| Internal Diameter of Paper Tube |
Optional within 5"~10" |
| Model |
JND-500 |
| Production Capacity (BPH) |
500 BPMIN |
| Input Voltage |
AC380/220V |
| Input Power (KW) |
20-48 |
| Diameter of Bottle Body |
Ф28 mm-Ф100mm |
| Length of Label |
30 mm ~ 250mm |
| Thickness of Label |
0.03 mm ~0.13 mm |
| Internal Diameter of Paper Tube |
Optional within 5"~10" |
