Applications:
The shrink wrapping machine is specially designed for the packaging of mineral water, beverage, wine, beer, infusion medicine bottle, featuring stable operation, tight and ordered packaging. It can serve as a pushing machine when high speed is demanded.
Features:
1. The shrink wrap machine introduces imported PLC procedure automatic control, stable performance, and accurate control.
2. It features fully-automatic feeding, tube management shrinkage, and cooling shape-fixing flow.

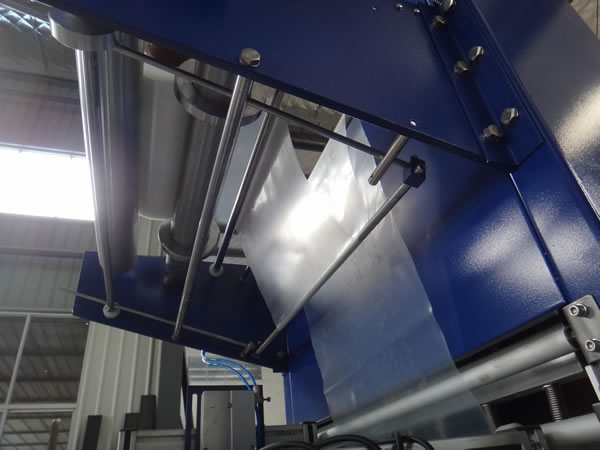

3. Film transportation is adopted with sensor switch, which gives a precise control of film length and as a result, reduced wastage could be realized.
4. Elector motor is adopted with imported transducer, realizing unlimited speed regulating.
5. Advanced swirl-wind circulative structure, three-layer insulation treatment, and energy conservation;
6. Reinforced cooling shape-fixing channel helps to accelerate pack-shaping, and provides much convenience for storage and transportation.
Model | JND-150A |
Working Power | AC380V 50/60HZ |
Total Power | 20KW |
Packing Speed | 8-15PACKAGES/MIN |
Max. Packing Size | L600*W400*H350 mm |
Pack type | Film |
Packs | Length:200-530mm; Width:110-350mm; Height:70-360mm |
Film | Material:LDPE Thickness:30-150um |
Working Pressure | 0.6-0.8MPA |
External Dimension | L5050*W3300*H2200mm |
Main Machine | L1180*W1080*H2370 mm |
Thermo-wind Stove | L3890*W1050*H2040 mm |
