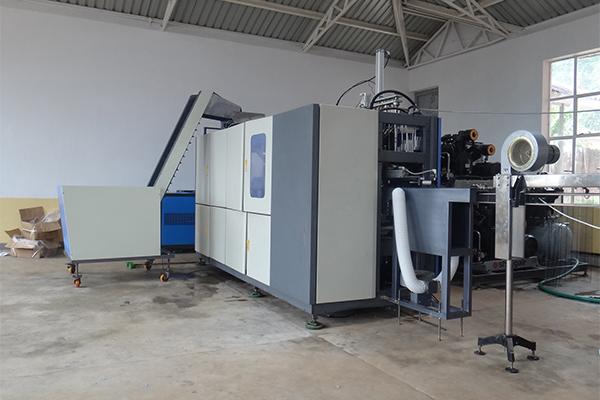

Automatic Bottle Blow Molding Machine
Applications of Auto Bottle Blow Molding Machines
JND series Auto Bottle Blow Moulding Machines are extensively used for manufacturing PET plastic containers and packages for mineral water, beverage, oil, cosmetic and hot infusion, etc.
Features of Auto Bottle Blow Molding Machines
1. Labor saving:
Oonly one operator is needed for its high automation: the bottle blow moulding machine is controlled by micro-computers and each production process is equipped with self-locking functions which ensured safety production.
2. Energy saving and cost saving:
JND automatic bottle blow moulding machine adopted a high pressure clamping system with automatic pressure adjustment function. This system can help guarantying that the mold sealing is under condition of 100% air tightness before blowing and help avoiding air energy loss owing to incomplete air tightness. Such an effective control over air energy and power further helps saving production cost.
| Model | JND-SS4000 |
| Clamping Force | 370KN |
| Clamping Stroke | 130MM |
| Max. Stretching Stroke | 370MM |
| Bottom Moving Stroke | 70MM |
| Number of Cavities | 4Cavity |
| Theoretical Output | 4000 BPH |
| Electrical System | |
| Voltage Standard | 380v/3PH/50Hz or special order |
| Total Power (Full Loaded) | 64KW |
| Container | |
| Max. Container Volume | 2L |
| Neck Diameter Range | 16-38mm |
| Max. Container Diameter | 110mm |
| Max. Container Height | 380mm |
| Air system | |
| Low Air compressor | 8-10Bar |
| High Air compressor | 30-40Bar |
| Dimension & Weight | |
| Blow molding machine | 3.8*1.5*2.7m |
| Preform Autoloader | 1.02*2.2*2.7m |
| Net Weight | 3.5T |
| Model | JND-SS5500 |
| Clamping Force | 565KN |
| Clamping Stroke | 130MM |
| Max. Stretching Stroke | 370MM |
| Bottom Moving Stroke | 70MM |
| Number of Cavities | 6 Cavity |
| Theoretical Output | 5500 BPH |
| Electrical System | |
| Voltage Standard | 380v/3PH/50Hz or special order |
| Total Power (Full Loaded) | 64KW |
| Container | |
| Max. Container Volume | 2L |
| Neck Diameter Range | 16-38mm |
| Max. Container Diameter | 110mm |
| Max. Container Height | 380mm |
| Air system | |
| Low Air compressor | 8-10Bar |
| High Air compressor | 30-40Bar |
| Dimension & Weight | |
| Blow molding machine | 4.75*1.8*2.7m |
| Preform Autoloader | 1.02*2.2*2.7m |
| Net Weight | 4T |
