Applications of Automatic Liquid Filling Machine

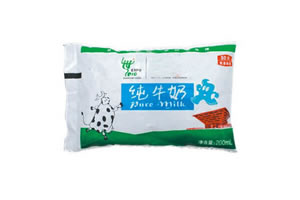

J&D automatic liquid packer is widely used for various kinds of liquid package, such as milk, water, juice, drink, ice bag drinks, soy sauce, vinegar, yellow rice wine and beancurd, etc, using single-layer PE film or two-layer or three-layer co-extrusion film as packing materials.
Technical parameters
| Model |
JND-1 |
| Film width (mm) |
100-320 |
| Filling Capacity (bags/h) |
1500-2000 |
| Production efficiency(ml) |
50-500 |
| Voltage |
220V-380V 50HZ-60HZ |
| Power |
1.6KW |
| Weight |
275KG |
| Overall dimension(mm) |
880*760*1800 |
| Model |
JND-2 |
| Film width (mm) |
100-380 |
| Packing Capacity (bags/h) |
1100-1300 |
| Production efficiency(ml) |
200-100 |
| Application voltage |
220V-380V 50HZ-60HZ |
| Power |
2.5KW |
| Weight |
380KG |
| Overall dimension(mm) |
1050*850*2050 |
| Model |
JND-1ZF |
| Film width (mm) |
150-320 |
| Packing Capacity (bags/h) |
1100-1300 |
| Production efficiency(ml) |
50-500 |
| Application voltage |
220V-380V 50HZ-60HZ |
| Power |
2.1KW |
| Weight |
370KG |
| Overall dimension(mm) |
880*760*1800 |
| Model |
JND-2ZF |
| Film width (mm) |
150-380 |
| Packing Capacity (bags/h) |
1100-1300 |
| Production efficiency(ml) |
200-1000 |
| Application voltage |
220V-380V 50HZ-60HZ |
| Power |
2.5KW |
| Weight |
380KG |
| Overall dimension(mm) |
1050*850*2050 |
