Production Line use Stretch Wrapper

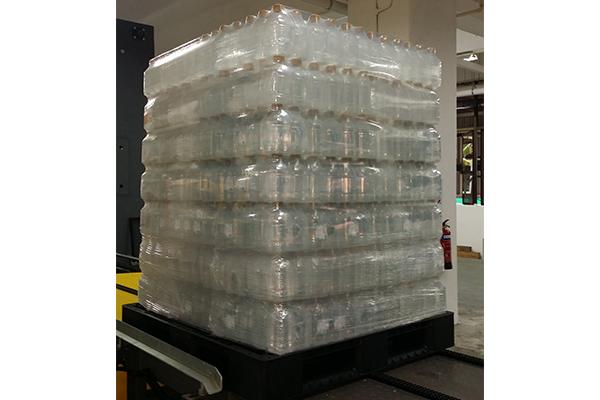

JND automatic stretch wrapping machine can be integrated into a packaging line for effective wrapping of pipes, chemical, electronic, food and beverage, and paper products. The use of stretch wrapper improves packaging efficiency and reduces labor costs.
Technical Specifications of Stretch Wrapping Machine (Pallet Wrapping Machine)| Model | JND 1800FZ-PL |
| Wrap size (L×W) | (800-1200)mm×(800-1100)mm |
| Wrap height (max) | L type: 1800mm H type: 2400mm Y type: 2800mm |
| Wrap efficiency | 30-50 Pallets/hour |
| Turntable speed | 0-15rpm Adjustable turntable speed |
| Turntable size | Diameter: Φ1800mm Height: 300mm |
| Turntable weight capacity (max) | 2000kg |
| Film carriage | Power pre-Stretch system up to 350% with adjustable speed |
| Lift system | Lift speed adjustable |
| Top plate (optional) | Motor-driven |
| Cut & clamp unit | Pneumatic Control; Automatic Film Attaching, Cutting And Wiping |
| Control system | PLC Control |
| Pneumatic system | 0.6-0.8Mpa; 1000ml/min |
| Total weight (max) | 1000kg |
| Machine size | 2820mm×1800mm× (2600-3200) mm |
| Power/voltage | Turntable 1.5kw;Film carriage 0.35kw;Lift system 0.37kw ; convey system 0.37kw (380V AC/50Hz/20A) |
